In linear motion NB provides a numerous and diverse range of products from basic machine parts to semicon equipments and specialized machines. Furthermore, we also provide Spindle products that correspond perfectly to the individual requirements of our various customers. NB Splindle products can be provided as a unit including assembling work as well as machining parts.

Descargar Catálogo
Descargar Datos CAD

Descripción del producto

NB spindle shafts complement an industry-leading line of bearings, bushings and related products. We offer engineering, manufacturing and overhaul of spindle units to provide a complete solution for general machinery, semiconductor and a diverse range of other applications. ISO 9001- and ISO 14001-registered facilities allow us to deliver outstanding quality control, even for high volume orders.

Keep reading to learn more about our spindle shaft manufacturing capabilities or contact our office directly to request a quote for your project.

Key Benefits At-a-Glance

NB’s experience in spindle shaft manufacturing and other precision machining dates back to 1939. In that time, we’ve developed a reputation for unsurpassed quality and innovation in everything we do. When you contact us for any spindle shaft engineering project, you are working with a company that’s dedicated to providing:

Flexible manufacturing options

including bearing case and spindle base design, complete unit engineering and overhauling of worn components

Precision machining capabilities

in our state-of-the-art, climate-controlled facilities designed to meet exceptionally high requirements for tolerance and overall quality control

Innovative surface treatments

including hard chroming and ceramic coatings for new components, as well as re-plating and grinding worn units to restore them

Our spindle manufacturing capabilities include BT, BBT, HSK inner tapers, gauge and bearing matching, thread grinding and more. We work with a wide range of standard materials, including high-carbon chromium bearing steel, Martensitic stainless steel, steel alloys and carbon steel for tools and machinery, aluminum chrome molybdenum steel and more.

Our facilities are equipped with CNC lathes, boring and milling machines, vertical machining centers, internal grinding machines and other machine tools. To discuss your specific requirements with one of our engineers, contact the NB office today by phone or email.

Total Manufacturing Solutions

NB is committed to providing total manufacturing solutions for clients in any industry. We’ll work with you every step of the way to deliver a product that meets your needs, offers excellent value for your budget and is turned around within a reasonable timeframe.

Upon receiving your drawings, we’ll review what’s required, order the necessary materials and develop a comprehensive plan for completing the project. From there, the spindle shaft production process involves multiple steps of turning, heat treatment, grinding and milling. It concludes with a final inspection to confirm we completed all work to the requested specifications.

Our internal quality management processes ensure we complete orders of any size on time, on budget and to the highest standards of accuracy possible. Highly skilled technicians use sophisticated 3D measuring tools and work in a climate-controlled environment to deliver the best possible results for our clients. We ship the final product with a complete inspection sheet confirming your order meets your specifications.

Spindle

As a linear bearings manufacturer, NB is serving a variety of customers in many industries such as general machinery, semiconductor equipment, special purpose machines.

The NB SPINDLE is a further contribution to the industry. From parts to the spindle unit NB conducts integrated production through total manufacturing.

Please contact us for any requirement.

Roll Shaft

NB SPINDLE is backed by expertise gained from decades of experience in high accuracy machining.

NB keeps supplying high quality products through skilled labor with time-nurtured skills, time-tested production process and technology, in addition to a help of the state-of-the art technology and equipment.
We have a belief that high processing technology is the key to customer-satisfaction.

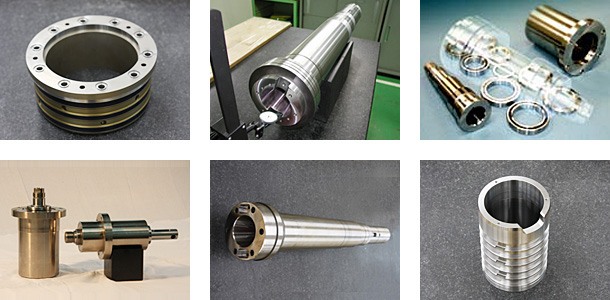

Spindle Shaft Machining Examples

Outer Surface Machining Range
Maximum diameter 650mm
Maximum length 6000mm
Surface roughness Ra0.4
Straightness customer specification
Concentricity customer specification
Perpendicularity customer specification
Cylindricity customer specification

Deep Hole Machining
Hole diameter Maximum length
one side through hole
Φ2~2.5mm 200 400
Φ3~3.5mm 300 600
Φ4~8mm 500 1000
Φ9~10mm 750 1500
Φ10~32mm 850 1700
Φ30~80mm 2000 4000

Internal Surface Grinding straight or tapered internal portion
Screw Grinding triangular and trapezoidal screws
Matched parts special nuts to match a given shaft, tapered portion of inner or outer diameter to match a given shaft or bearing
General machining center tapping, step machining, V-groove machining, screw machining, plate-groove machining, key-groove machining, flat surface machining, spot hardening
Surface Treatment industrial chrome plating, low temperature black chrome treatment, other customer request

Thermal-spraying Ceramic-coating (best-suitable for parts that require wear and corrosion resistance)
(1) standard material
high carbon chromium bearing steel (SUJ2)
chrome molybdenum steel (SCM415, 435)
carbon steel for machinery (S45C)
martensite stainless steel (equivalent to SUS440C )
austenite stainless steel (SUS303, 304)
steel alloy for tools (SKS3, SK4)
aluminum chrome molybdenum steel (SACM645)
(2) standard ceramic for thermal-spraying
main component: TiO2 titanium dioxide
specific gravity: 4.7
hardness: 58HRC or more
maximum temperature: 540℃
color: black
fine surface finish by grinding

En respuesta a las necesidades del cliente, NB proporciona la fabricación total desde el recibo del dibujo hasta la inspección final. La fabricación total incluye planificación de procesos, adquisición de materiales, torneado, tratamiento térmico, fresado, tratamiento superficial y rectificado.

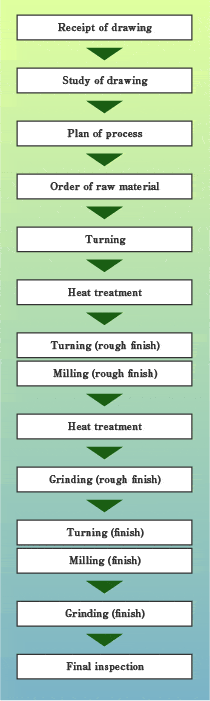

Process Chart (standard example)

Exactitud / Control de Calidad

El cuarto de la inspección se fija en 22 +/- 1 ℃ para asegurar la inspección exacta.

El mecanizado de alta precisión y la tecnología de inspección conducen a la inspección final.

Para garantizar la exactitud es necesario contar con operadores calificados e inspectores al mismo tiempo. Los inspectores calificados realizan habilidades de medición confiables en los productos terminados.

Fábrica de manufactura controlada por temperatura

La calidad se asegura con la máquina de medición 3-D, la máquina de medición de la forma, la máquina de medición de la circularidad, el etc. en el sitio constante de la temperatura.

Equipamiento Interno

Para responder a todos los requerimientos del cliente, NB invierte en el equipo. Los siguientes son una parte de las máquinas a mano.

Preguntas

¿Es posible una producción por volumen?

Sí, sí realizamos producción por volumen. Por favor contáctenos.

¿Qué materiales pueden maquinar?

Los materiales estandar son:
acero de soporte de cromo de alto carbono(SUJ2)
acero molibdeno de cromo (SCM415, 435)
acero carbón para maquinado (S45C)
acero inoxidable martensítico (equivalente al SUS440C)
acero inoxidable austenita (SUS303, 304)
aleación de acero para herramientas (SKS3, SK4)
acero molibdeno de cromo de aluminio (SACM645)

Por favor contáctenos para algún otro material.

¿Es posible triturar acero inoxidable?

Sí, lo es. El acero inoxidable austenita no magnético (SUS303, 304, 316) y el acero inoxidable martensítico (equivalente a SUS440C) son algunos ejemplos.

Por favor contáctenos para algún otro material.

¿Es posible triturar aluminio?

Una disculpa, no podemos.

¿Está disponible la hoja de inspección?

Entregamos el producto final con una hoja de inspección.

Por favor háganos saber los artículos requeridos de inspección al realizar la orden.

¿Es posible el esmerilaje de rosca?

Podemos manejar estriado (roscado triangular y trapezoidal). Sí trabajamos con maquinado total, incluyendo el estriado.

¿Qué tipo de tratamiento de superficie está disponible?

Los tratamientos estandar son:
enchapado con cromo industrial
enchapado con nickel electroless
óxido negro
tratamiento de cromo negro de baja temperatura (con revestimiento de fluoruro)

Por favor contáctenos para otros tratamientos de superficie.
